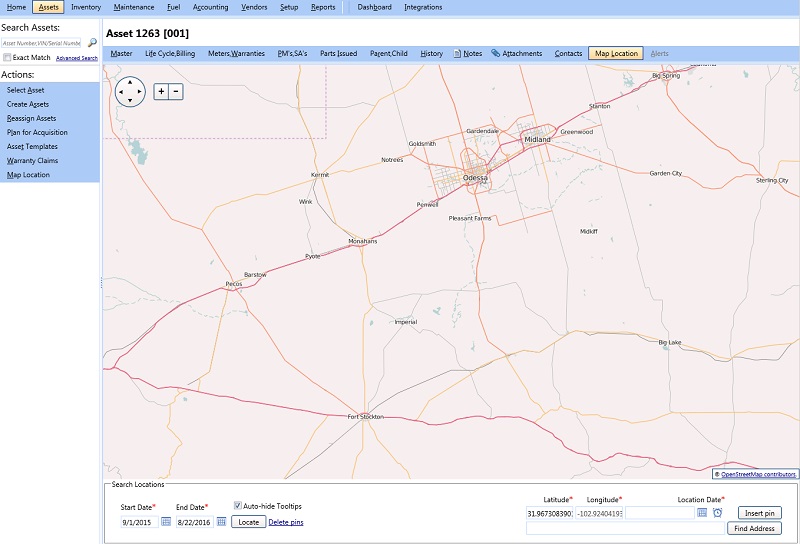

Map Location Tab

On the Map Location tab, you can pin the location of the asset on the map. This helps to keep a track of the assets in FASTER Web.

Tip

To view the Map Location tab, click the Map Location link.

To pin asset location on the map

1.    Search and view an asset record.

2.    Click the Map Location tab.

The map is displayed.

3.    In the Latitude and Longitude boxes, specify the latitude and longitude of the asset.

4.    In the Location Date field, specify a date and time for which you want to pin the asset location on the map.

Note: The Location Date field displays the current date and time by default.

5.    Click Insert Pin.

The asset's location is pinned on the map.

Tips:

·       To zoom in or zoom out the map, click   or   icons at the top-right corner of the map, respectively.

·       To navigate through the map, click the , , ,   icons at the top-right corner of the map, as required.

·       To find a specific location on the map, type the address in the box available in the Search Locations section and click Find Address.

·       To view the asset's location between a date range, specify the Start Date and End Date in the Search Locations section and click Locate.

·       To delete all the asset location pins between a date range, click the Delete Pins link.
